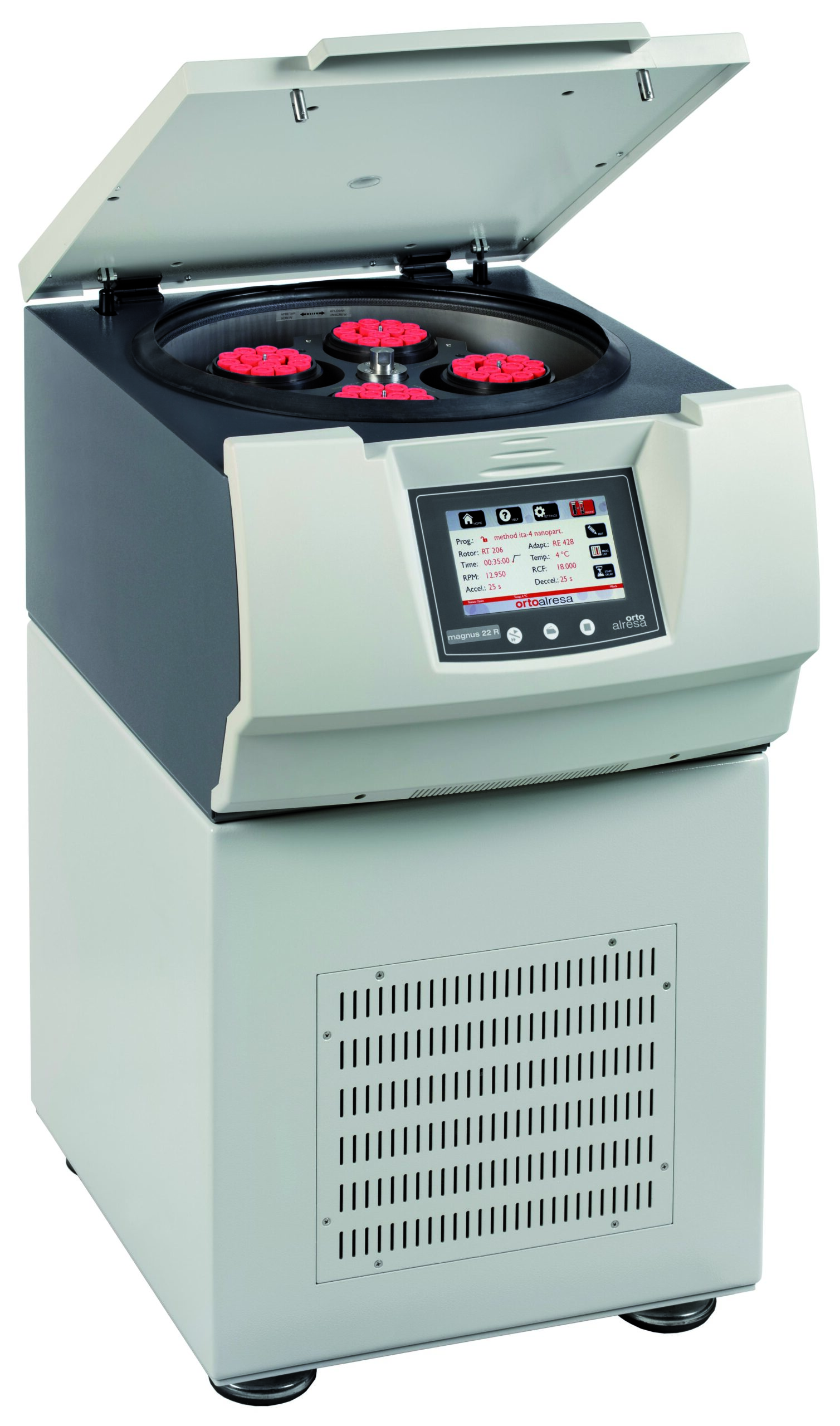

Magnus 22 R

Features

• Microprocessor controlled. PC connection.
• Induction motor maintenance free (brushless).
• Rotors and adapters list in memory.
• Noise level: below 60 dB.
• Start, stop, open lid and short spin with adjustable speed buttons.
• Option of free/locked adjustment of RPM/ RCF along the run.
• Automatic open lid, programmable.
• Low height for easy access.
• Last values remain in memory.
• Automatic rotor recognition. Over-speed protection.

TFT color touch screen, visible from more than 3 m.:

• Shows RPM and RCF, time, temperature, acceleration/deceleration values (PCBS and unbalance location system (ULS).
• Speed programming in 10 RPM/10 xg steps.
• Real RCF values on screen based on accessories configuration.
• Count up/down from “0” or at “set RPM/RCF” for test reproducibility.
• Timer countdown/up from “0” or at “set RPM/ RCF” for reproducible tests.
• Timer from 1 sec. to 99 hours programmable in 1 sec. steps and hold position.
• PCBS: Progressive controlled acceleration and braking system up to 175 selectable ramps that prevents sample homogenization after separation.
• ULS: Unbalance location system indicating on the screen the number of the bucket which produces the unbalance switch off.
• Start delay: To program the time at which the cycle is to begin.
• Linked program: Permits the linking of up to 8 consecutive programmes without the need of user intervention.
• 100 programmable memories, with protection under password.
• Several acoustic and visual messages showing the user the situation of the device.

Safety:

• Lid provided with security systems:
  – Automatic lid lock system, motorized with double lock.
  – Emergency lid-lock release.
  – Locking and protection against opening along the run.
  – Lid dropping protection.
  – Port in the lid for calibration and operation checking.

• Ergonomic design that allows close the lid effortless.
• Unbalance detection and switch off.
• Protection safety ring between the centrifugation chamber and the housing.
• Chamber of centrifugation in stainless steel (easy cleaning).
• Rotors can be removed with the lid closed. Hermetic lids.
• Rotors and adapters autoclavable, easy to install by the user.
• Automatic disconnection for energy saving up to 8 h.
