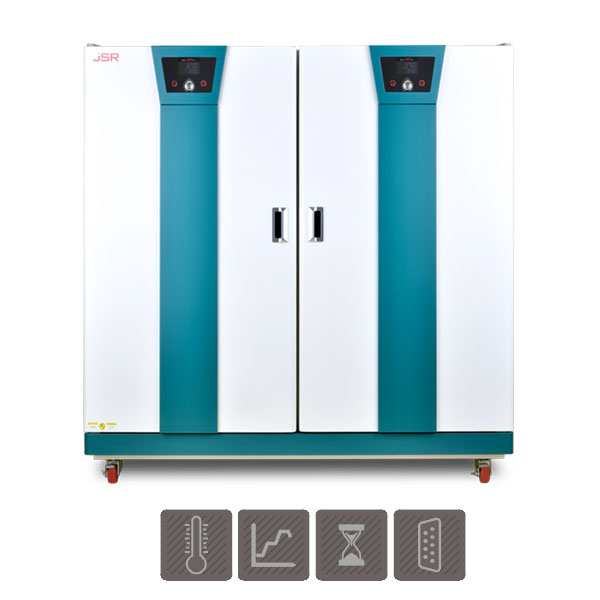

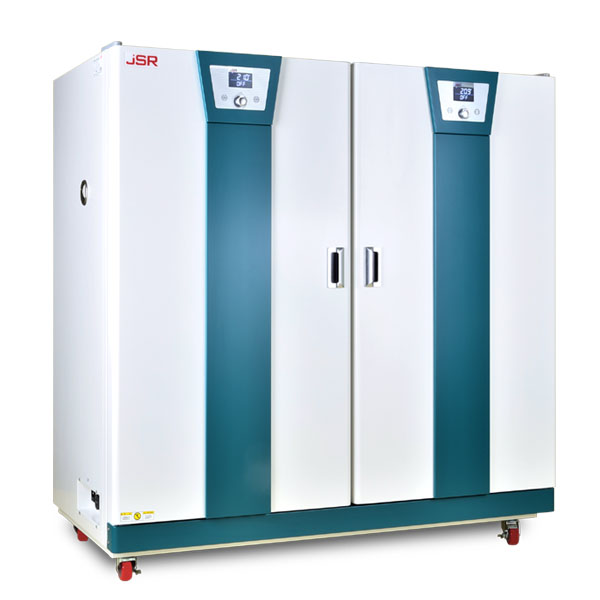

General Incubator, Programmable, Dual Chamber

Specifications

Heating System	Forced Air Convection
Temp. Range	ambient+5 ^oC ~ 70 ^oC
Accuracy	± 0.3 ^oC at 37.0 ^oC
Uniformity	± 1.5 ^oC at 37.0 ^oC
Controller	JIC-CON 5th GEN Programmable PID Controller
Program	1 Pattern, 10 Steps, 1 ~ 999 (or unlimited) times repreat
	3-Zone Temperature Control Algorithm
	3-Point Temperature Calibration
	1-Point Temperature Offset Calibration
Sensor	Class A Pt-100 Ω Sensor
Safety	Over-Temperature Cut-Off
	Over Current Cut-Off
Material	Body – Epoxy Powder Coated Steel
	Chamber – Stainless Steel 304
	Inner Door – 5 mm thick Tempered Safety Glass
	including PVC coated wire shelf
	optional perforated stainless steel shelf
Electrical Data	220±10% VAC 50/60Hz 1-Phase
Plug config.	CEE 7/7 Schuko or BS 1363

One pattern 10 steps program – User can compose 10 steps of varying temperature program and can save it in a memory. Composed program can be repeated 1 ~ 999 times or unlimited number of time.
3 group zone PID algorithm – Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range.
3 Point calibrations – Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range.
1 Point off set calibration – Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERTURE POINT of frequent use.

Performance

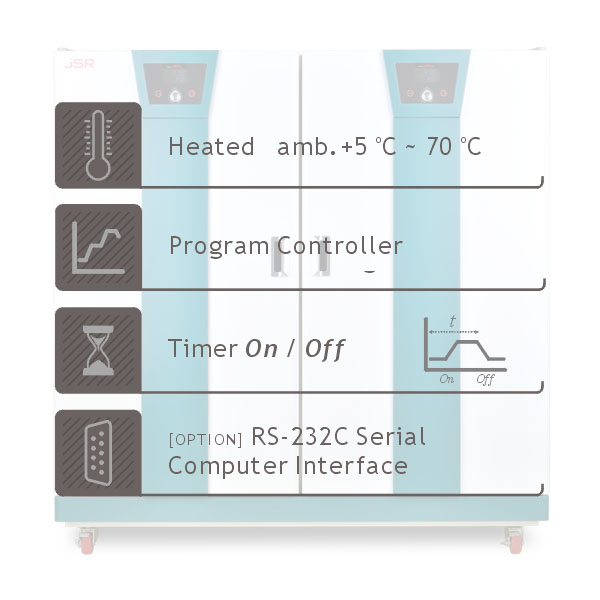

Control Temperature Range from ambient +5 ^oC to +70 ^oC.
Forced air circulation for excellent thermal accuracy and uniformity
Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity
Separate heating compartment located on back wall for contamination free and maintenance free

Controller

DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER – Integrated Digital Microprocessor Control System
GRAPHIC LCD DISPLAY – Back Light Graphic LCD Display provides user-friendly operating information
UV COATED POLYCARBONATE TOUCH PANEL – Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability
ENCODER TYPE JOG DIAL – Push to Start and Stop, Rotary turn to change values provides easy and simple user interface
0.1 ^oC CONTROL RESOLUTION
10 Step Programming Capability, 1 ~ 999 times repeatable
Auto-Stop Timer 1 min ~ 99 hour 59 min and alarm
Auto-Start Timer 1 min ~ 99 hour 59 min and alarm
Temperature and Timer Memory Function in frequent use
3-GROUP ZONE PID ALGORITHM
3-POINT CALIBRATION
1-POINT OFFSET CALIBRATION
POWER and TIMER RESTORE FUNCTION in case electric power outage
CLASS A PT-100 Ω Sensor
RS-232C PC COMMUNICATION INTERFACE [OPTION]

DESCRIPTIONS	JSGI-250DT
Dimension Data
Chamber Volume	2 Chambers x 250 Liters
Inner Dims. (W x D x H mm)	500 x 500 x 1000 / chamber
Outer Dims. (W x D x H mm)	1365 x 735 x 1400
Inner Glass Door (W x H mm)	561 x 1077
No. of Shelf Positions	36 ea by 25mm spacing
No. of Shelf included	6 ea
No. of Ventilation Damper	2 ea

Performance Data
Heating System	Forced Air Convection
Temp. Range	Amb. +5 ^oC ~ +70 ^oC
Accuracy	±0.3 ^oC at 37.0 ^oC
Uniformity	±1.5 ^oC at 37.0 ^oC
Heat up time to 37.0 ^oC	20 min.

Electrical Data
Rated voltage	220 ± 10% VAC
Power frequency	50 / 60Hz
Heater Output	400 W / chamber
Nominal power	410 W / chamber 2.0 amp / chamber
Phase	1 Phase
Plug configuration	CEE 7/7 Schuko or BS 1363
	Each chamber has individual power supply
